1032系列貼片保險絲

總序/General：

• 動作快，耐沖擊能力高/Fast acting，Inrush withstand capability

• 表面貼裝式大電流熔斷器/Surface mount high current fuse.

• 電流范圍為20-60A/ vailable in ratings of 20 to 60 Amperes

• 耐電壓高、Higher voltage rating up to 100VDC

• 尺寸為10.25x3.20mm 表面貼裝/10.25mm×3.20mm square shape surface mount

• 操作溫度范圍寬，為-55°C ~125°C /-55°C ~125°C Operating temperature

•環境適應性強/ Excellent environmental integrity

•增強的熱循環耐久性/ Enhanced thermal cycling endurance

應用場所/Application

•存儲電源/ Storage system power

• 電腦服務器的冷風扇/Cooling fan system for PC server

• 電壓調節模組/Voltage regulator module

• 基站電源/Base station power supply

• 電腦服務器的電壓調節模組/Voltage regulator module for PC server

• 高端服務器、刀片計算/High end servers / Blade computing

• 電池管理系統/Battery Management System

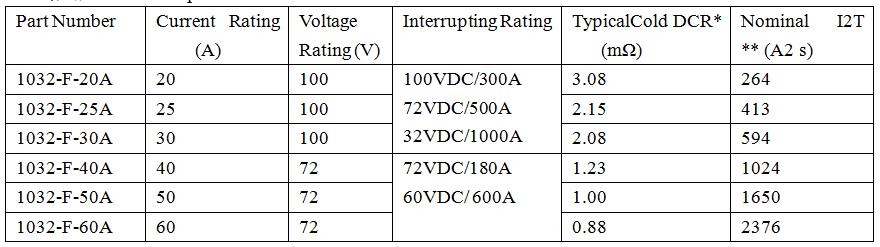

電氣性能/Electrical Specifications

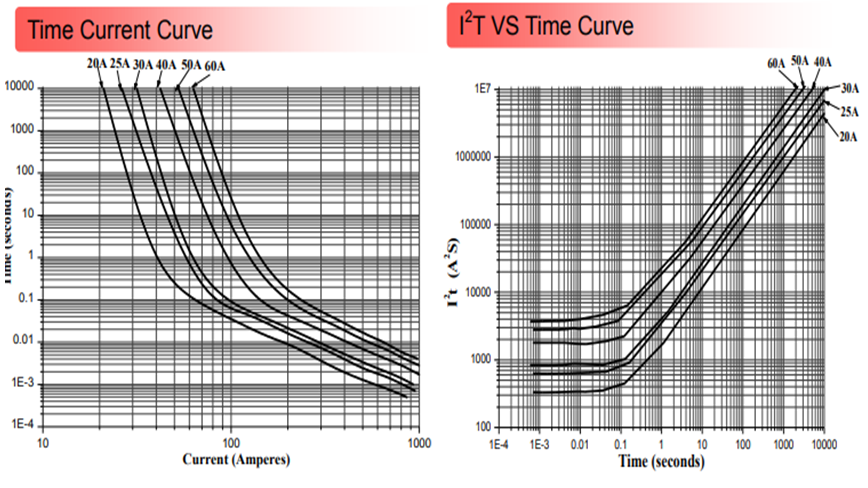

** MeltingI2 T at 10 times of rated current

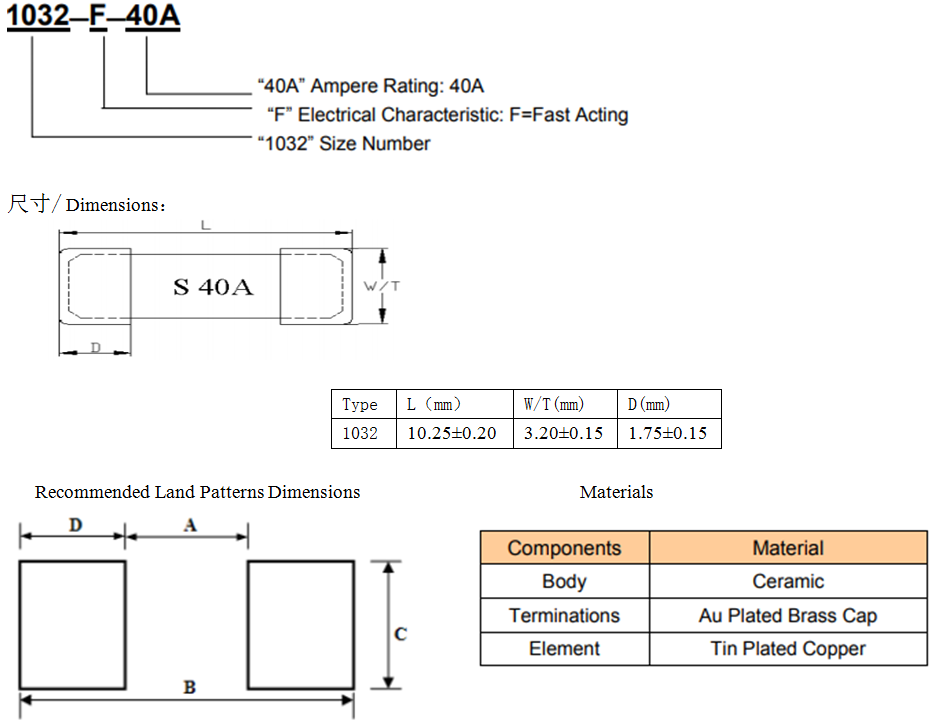

Part Number Information

儲存/Storage

該產品儲存室內溫度是5℃-30℃，濕度是25%RH~60%RH ，用密封的塑料袋，真空包裝，使用的時候再打開./•The ambient temperature recommended for storage shall be between 5℃~30℃. •The relative humidity recommended for storage shall be between 25%RH~60%RH. •Sealed plastic bags with desiccant shall be used to reduce the oxidation of the termination and shall only be opened prior to use. •The products shall not be stored in areas where harmful gases containing sulfur or chlorine are present. S
